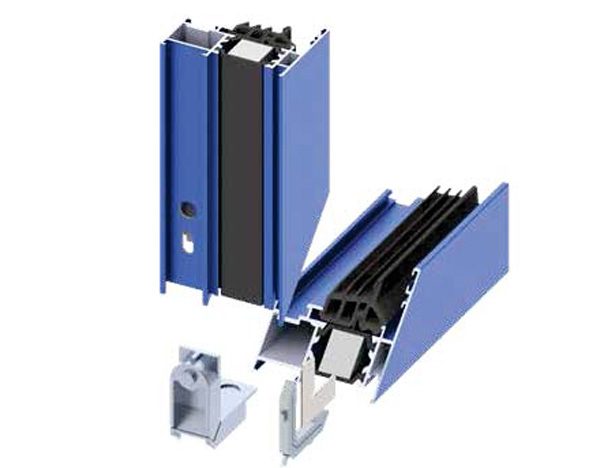

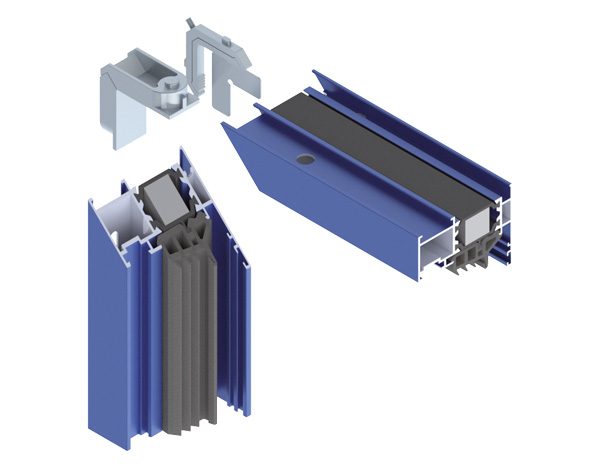

IT-71 RPT
PRACTICABLE
This joinery system for windows and doors has thermal break technology, which gives it excellent performance in terms of thermal and acoustic insulation. This translates into greater comfort inside the home, reducing energy consumption and, therefore, the electricity bill. In addition, the carpentry is designed to adapt to any architectural style and is available in different finishes and colors.
| FRAME DIMENSION (MM) | 71 |
| Sheet dimension (mm) | 78 |
| frame wing (mm) | 24 |
| Side view (mm) | 93 |
| center view (mm) | 143 |
| Polyamide frame (mm) | 3. 4 |
| Polyamide sheet (mm) | 3. 4 |
| Maximum glass (mm) | 57 |
| WINDOW TEST RESULTS | |
| air permeability | class 4 |
| water tightness | E1650 |
| wind load resistance | C5 |
| BALCONERA TEST RESULTS | |
| air permeability | class 4 |
| water tightness | e900 |
| wind load resistance | C3 |
| Thermal transmittance with glass 6/16Ar/6 BE (1500×2300) (W/m2K) | 1.06 |
| Thermal transmittance with glass 4/16/4 BE (1500×2300) (W/m2K) | 1.99 |
| frame squares | 2 |
| sheet squares | 2 |
| Maximum weight per sheet | 130kg |
| Smallest possible sheet dimension (mm) | 300 |
